Creating Parabolic Reflector for CFL


Post new topic   Reply to topic   printer-friendly view    http://indianaquariumhobbyist.com/community/ Forum Index -> DIY
View previous topic :: View next topic
Author Message
Tirtha C
Committed Member of IAH
Committed Member of IAH



Joined: Feb 24, 2007
Posts: 4066
Location: Miyapur, Hyderabad

Status: Offline
PostPosted: Fri Aug 10, 2007 11:30 pm Post subject: Creating Parabolic Reflector for CFL Reply with quote

 While  planning  for  a  new  1.5  feet  Moss  cube  I  stuck  with  the  light  and  reflector.  Then  I  have  decided  to  use  CFL  for  the  tank  and  started  to  hunt  for  a  good  reflector.  As  usual  in  Gurgaon  I  failed  to  get  a  reflector  for  CFL.  Then  started  with  my  own  Idea  and  get  a  nice  reflector  which  costs  me  25/-.  Below  is  the  steps.

 Requirement:

 1.  Aluminium  Wrap  (Use  to  wrap  food)
 2.  A  Plastic  bowl  (Depend  on  the  size  of  the  reflector  you  Want)
 3.  Faviquick  (5/-  one)
 4.  Some  Wheat  Flour  and  boiling  water
 5.  Edit  news  papers
 6.  A  shoe  Box  cover
 7.  1  Bulb  Holder,  1  plug  and  wire

   Process:

 Get  a  parabolic  plastic  bowl  based  on  the  reflectgor  size  you  want.



 Wrap  the  outer  side  of  the  Bowl  with  Aluminium  Foil.  Make  sure  there  is  no  open  space.  If  you  want  you  can  seal  the  foil  joints  with  Selotape.



 Now  paste  some  pieces  of  news  paper  on  the  foil  using  Faviquick.  No  need  to  paste  them  completely,  make  sure  they  just  got  a  hold  on  that  foil.



 Now  we  need  to  pactice  some  class  room  tutorial  Smile  and  make  the  fingur  stinky.  Add  Boiling  water  to  Wheat  Flour  to  make  a  thick  paste.  Do  not  make  the  paste  much  soft  and  wet.  Now  apply  the  paste  all  over  the  papers  pieces,  make  it  bit  thick.  Now  again  paste  piece  of  news  papers  on  it.  Repeat  this  steps  for  4-5  times  to  make  the  reflector  thickness  much  better  and  sturdy.



 In  this  step  we  need  to  create  a  Cardboard  circle  using  the  shoe  box  cover  and  paste  it  on  the  top  of  the  structure  to  get  the  shade  in  a  right  shape.  Make  sure  you  made  the  center  hole  in  that  board  which  will  hold  the  holder.  Do  not  make  hole  on  the  paper  or  foil  unless  it  is  completely  dried.



 Thatz  it....  we  are  done.  Keep  the  structure  in  Direct  Sunlight  for  a  day  to  make  it  100%  dry  and  sturdy.

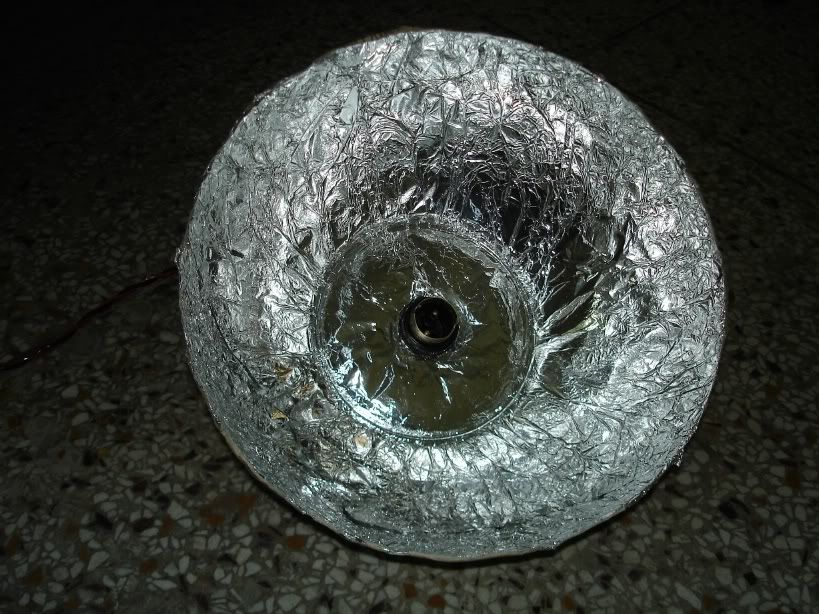

 Take  out  the  bowl  and  Cut  the  edge  of  the  foil  so  it  will  give  us  the  final  Reflector  shape.
 Now  make  hole  through  the  paper  and  Foil  to  attach  the  holder.
