DIY Filter for a 10' long tank
Goto page 1, 2  Next

Post new topic   Reply to topic   printer-friendly view    http://indianaquariumhobbyist.com/community/ Forum Index -> Filtration Equipment
View previous topic :: View next topic
Author Message
josyjames
Committed Member of IAH
Committed Member of IAH



Joined: Apr 21, 2010
Posts: 2500
Location: Bangalore-Ramamurthy Nagar

Status: Offline
PostPosted: Sun Nov 02, 2014 9:27 pm Post subject: DIY Filter for a 10' long tank Reply with quote

 Hi,

 Planning  to  DIY  a  filter  for  a  10'L  x  3'W  x  2'H  fresh  water  pond.  Currently  the  tank  holds  about  20  small  carps.

 Plan:

 Would  be  using  a  25lts  or  30lt  blue  container  can.
 Would  b  using  3000LPH  submersible  pump  to  make  an  overflow  kind  of  filter.
 Filter  media;  What  to  use  and  what  quantity?

 Require  inputs  for  the  filter  media  to  be  used  in  such  a  huge  size  container.  What  all  filter  media  to  be  used?

 Filling  ceramic  ring  to  this  big  size  container  would  cost  a  bomb!!!  So  thinking  on  some  cheap  media  options.

 The  water  from  the  tank  would  go  till  bottom  of  the  container.  The  container  would  be  filled  with  media  till  3/4th  of  the  tank.  The  pure  water  would  fill  top  of  the  tank  and  would  flow  back  to  the  tank.
Back to top
View user's profile Send private message Send e-mail
Preeths
Committed Member of IAH
Committed Member of IAH



Joined: Nov 07, 2007
Posts: 2010
Location: Bangalore

Status: Offline
PostPosted: Sun Nov 02, 2014 10:11 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 Hi  Shelly
 I  have  used  these  in  my  DIY  filters  and  they  work  really  well.  You  can  get  them  at  city  market  at  whole  sale  price.  The  price  will  be  in  single  digits.  They  will  fill  up  a  large  volume  and  keep  the  water  clean.  I  used  the  same  concept  as  you,  but  kept  the  filter  inside  the  tank.  Hence  I  had  no  worries  about  water  over  flowing  out  side.



Back to top
View user's profile Send private message
Andrew
Regular Poster on IAH
Regular Poster on IAH



Joined: Apr 03, 2014
Posts: 393
Location: Coimbatore

Status: Offline
PostPosted: Sun Nov 02, 2014 11:01 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 Hi  Shelly,

 I  did  a  same  method  like  yours  and  used  bottom  1kg  ceramic  rings,  above  that  i  kept  plastic  fence  the  green  color  one  which  i  cut  into  6  pieces  and  top  of  it  4kg  small  natural  stones  and  top  of  it  nylon  scrubber(around  50)  like  preeths  mentioned  and  filter  foam.  Where  i  also  run  a  pvc  pipe  extra  with  inlet  pipe  so  every  6  months  when  cleaning  will  remove  only  foam  and  nylon  scrubber  and  will  clean  with  tank  water  and  will  use  blower  through  the  pvc  to  clean  the  stones.  below  is  the  pic  of  my  setup




Back to top
View user's profile Send private message Send e-mail
franco
IAH New Member
IAH New Member



Joined: May 09, 2010
Posts: 53
Location: Goa/Kuwait

Status: Offline
PostPosted: Sun Nov 02, 2014 11:29 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 Nice  DIY  ..m  thinking  of  doing  a  similar  setup...
Back to top
View user's profile Send private message
josyjames
Committed Member of IAH
Committed Member of IAH



Joined: Apr 21, 2010
Posts: 2500
Location: Bangalore-Ramamurthy Nagar

Status: Offline
PostPosted: Mon Nov 03, 2014 10:22 am Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 @  Preetam,

 Thanks  for  the  input.  Will  get  this  from  the  market.

 @  Andrew,

 I  am  planning  to  make  baskets  out  of  mosquito  net  and  store  each  media  in  the  basket.  So  while  cleaning,  it  would  be  very  easy.  Just  pull-up  the  basket  and  rinse  it  with  the  same  water  from  the  container.

 Can  I  use  this  clay-ball  as  media?


Back to top
View user's profile Send private message Send e-mail
Deba
Regular Poster on IAH
Regular Poster on IAH



Joined: Jul 19, 2007
Posts: 1092
Location: Kolkata

Status: Offline
PostPosted: Mon Nov 03, 2014 10:31 am Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 I  have  seen  a  large  tank  recently  where  three  hang  on  filters  were  used  at  regular  interval  and  it  does  a  good  job..........
Back to top
View user's profile Send private message
Andrew
Regular Poster on IAH
Regular Poster on IAH



Joined: Apr 03, 2014
Posts: 393
Location: Coimbatore

Status: Offline
PostPosted: Mon Nov 03, 2014 11:46 am Post subject: Re: DIY Filter for a 10' long tank Reply with quote


josyjames  wrote  (View  Post):


 @  Andrew,

 I  am  planning  to  make  baskets  out  of  mosquito  net  and  store  each  media  in  the  basket.  So  while  cleaning,  it  would  be  very  easy.  Just  pull-up  the  basket  and  rinse  it  with  the  same  water  from  the  container.

 Can  I  use  this  clay-ball  as  media?




 I  used  vegetable  net  bags  the  orange  bags,  That's  a  good  filter  media  want  to  use  above  8mm  size  for  pond  but  cleaning  should  be  done  frequently  for  this  otherwise  it  will  clog  fast,  best  for  pond  is  bio  ball  for  200rs  we  can  get  400  bio  balls  and  i  have  seen  umino.in  is  the  beast  deal  for  both  clay  and  bio  ball.  And  if  you  know  who  gives  less  than  them  do  let  me  know.

 http://umino.in/28-aquairum-filter-media
Back to top
View user's profile Send private message Send e-mail
subrat
IAH New Member
IAH New Member



Joined: Jul 22, 2013
Posts: 85


Status: Offline
PostPosted: Mon Nov 03, 2014 12:03 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote


josyjames  wrote  (View  Post):
@  Preetam,

 Thanks  for  the  input.  Will  get  this  from  the  market.

 @  Andrew,

 I  am  planning  to  make  baskets  out  of  mosquito  net  and  store  each  media  in  the  basket.  So  while  cleaning,  it  would  be  very  easy.  Just  pull-up  the  basket  and  rinse  it  with  the  same  water  from  the  container.

 Can  I  use  this  clay-ball  as  media?




 i  am  using  same  clay  balls  in  my  7  footer  tank  along  with  ceramic  ring,  brought  from  ankur  nursery  ,check  following  link

 http://ankurnursery.com/product-details-R.asp?Pid=68&Cname=Soil+Conditioners
Back to top
View user's profile Send private message
josyjames
Committed Member of IAH
Committed Member of IAH



Joined: Apr 21, 2010
Posts: 2500
Location: Bangalore-Ramamurthy Nagar

Status: Offline
PostPosted: Mon Nov 10, 2014 3:24 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 Got  2  kgs  Clay  ball..  Yet  to  procure  the  sponges/filter  wools  etc.

 Once  I  start  the  construction  of  the  filter,  will  post  detailed  pictures.
Back to top
View user's profile Send private message Send e-mail
Andrew
Regular Poster on IAH
Regular Poster on IAH



Joined: Apr 03, 2014
Posts: 393
Location: Coimbatore

Status: Offline
PostPosted: Mon Nov 10, 2014 8:07 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 What's  your  plan  for  canister  ?
Back to top
View user's profile Send private message Send e-mail
Deepak267
Regular Poster on IAH
Regular Poster on IAH



Joined: Jul 28, 2008
Posts: 554
Location: UK, Bengaluru India

Status: Offline
PostPosted: Mon Nov 10, 2014 10:24 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 Shelly,

 Where  are  you  planning  to  make  this  pond?
 You  know  I  make  those  drums  in  30  and  50  litres..  I  can  arrange  one  for  you.

 Lets  meet  up  once  and  we  can  catch  up.

 Deepak
Back to top
View user's profile Send private message Visit poster's website
josyjames
Committed Member of IAH
Committed Member of IAH



Joined: Apr 21, 2010
Posts: 2500
Location: Bangalore-Ramamurthy Nagar

Status: Offline
PostPosted: Tue Nov 11, 2014 11:16 am Post subject: Re: DIY Filter for a 10' long tank Reply with quote


Andrew  wrote  (View  Post):
What's  your  plan  for  canister  ?


 @  Andrew,

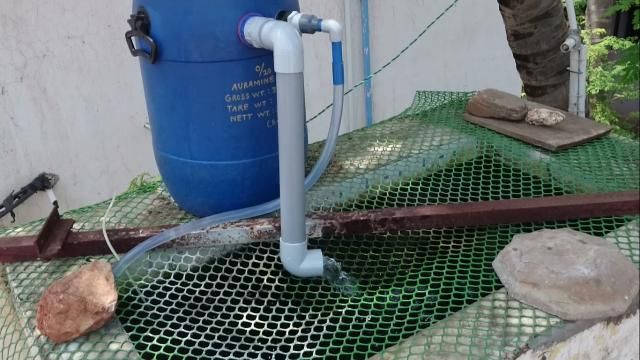

 This  is  the  plan  for  the  open  canister.





Deepak267  wrote  (View  Post):

 Shelly,

 Where  are  you  planning  to  make  this  pond?
 You  know  I  make  those  drums  in  30  and  50  litres..  I  can  arrange  one  for  you.

 Lets  meet  up  once  and  we  can  catch  up.

 Deepak



 The  pond  belongs  to  my  builder.  He  has  a  10'  long  pond  and  we  are  building  the  filter  for  that.  He  already  have  a  50lts  container.

 But  yes..  I  need  a  50  -  100lts  container  for  me..  Smile
Back to top
View user's profile Send private message Send e-mail
Andrew
Regular Poster on IAH
Regular Poster on IAH



Joined: Apr 03, 2014
Posts: 393
Location: Coimbatore

Status: Offline
PostPosted: Tue Nov 11, 2014 12:31 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 @  Shelly,

 You're  not  placing  any  coarse  foam  below  the  clay  balls,  if  not  large  dust  particles  will  clog  the  clay  ball  fast  right?

 @  Deepak,

 Can  you  post  a  picture  of  the  canister
Back to top
View user's profile Send private message Send e-mail
josyjames
Committed Member of IAH
Committed Member of IAH



Joined: Apr 21, 2010
Posts: 2500
Location: Bangalore-Ramamurthy Nagar

Status: Offline
PostPosted: Tue Nov 11, 2014 12:41 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote


Andrew  wrote  (View  Post):
@  Shelly,

 You're  not  placing  any  coarse  foam  below  the  clay  balls,  if  not  large  dust  particles  will  clog  the  clay  ball  fast  right?




 Okay..  Then  I  can  add  a  layer  or  coarse  foam  beneath  the  clay  balls.
Back to top
View user's profile Send private message Send e-mail
Agnelo
IAH New Member
IAH New Member



Joined: Dec 10, 2013
Posts: 93


Status: Offline
PostPosted: Tue Nov 11, 2014 3:24 pm Post subject: Re: DIY Filter for a 10' long tank Reply with quote

 Hello  Shelly,

 As  per  my  knowledge,  water  should  first  flow  through  all  the  sponge  ie  mechanical  Filtration  and  then  then  trough  biological  Filtration  ie  clay  balls  and  bio  rings.  I  read  somewhere  that  ceramic  rings  are  good  in  terms  of  biological  filtration  because  it  takes  lot  of  time  for  the  bacteria  to  build  up  on  plastic  bio  balls.

 One  more  tip  -  You  can  also  think  of  placing  activated  carbon  as  media.  This  should  be  just  before  the  water  flows  back  into  the  tank.

 Regards
 Agnelo
Back to top
View user's profile Send private message Send e-mail
Display posts from previous:
Post new topic  Reply to topic   printer-friendly view http://indianaquariumhobbyist.com/community/ Forum Index ->  Filtration Equipment All times are UTC + 5.5 Hours
Goto page 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You cannot download files in this forum




Powered By: phpBB © 2001 - 2006 phpBB Group
Nuke-Evo Conversion By: Evo-Themez | iCGstation v1.0 Template By Ray


[News Feed] [Forums Feed] [Downloads Feed] [Web Links Feed] [Validate robots.txt]


Forum Modification Pack by Revolution-Mods.

PHP-Nuke Copyright © 2006 by Francisco Burzi.
All logos, trademarks and posts in this site are property of their respective owners, all the rest © 2006 by the site owner.
Powered by Nuke-Evolution
[ Page Generation: 6048 Seconds | Memory Usage: 3.19 MB | DB Queries: 122 ]

Do Not Click
