 Posted: Sun Jul 03, 2011 8:55 pm Post subject: Yet another LED light for a Nano tank.. |
 |
|

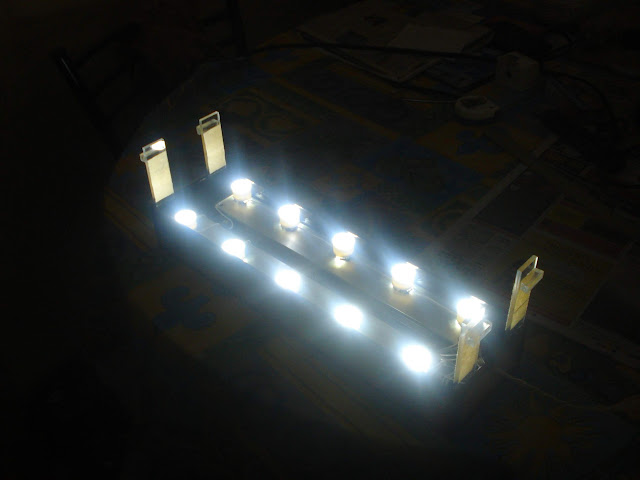

Yet another LED light for a Nano tank..
Using 3Watts LED. 30Watts LED Setup...
 |
|
|
| Back to top |
|
 |
nanomania
Regular Poster on IAH
Joined: May 16, 2011
Posts: 1060
Location: mumbai (south)
Status: Offline
|
| Posted: Sun Jul 03, 2011 9:31 pm Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
| u using for planted? |
|
|
| Back to top |
|
|
josyjames
Committed Member of IAH
Joined: Apr 21, 2010
Posts: 2500
Location: Bangalore-Ramamurthy Nagar
Status: Offline
|
| Posted: Sun Jul 03, 2011 9:36 pm Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
@ Nanomania,
Yes. Its for a nano planted tank. 40cm in length.... |
|
|
| Back to top |
|
|
Anandarajkumar
Regular Poster on IAH
Joined: Apr 24, 2009
Posts: 1048
Location: Secunderabad - Sainikpuri
Status: Offline
|
| Posted: Sun Jul 03, 2011 11:05 pm Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
Nice one Shelly!  |
|
|
| Back to top |
|
|
hrishi007
Committed Member of IAH
Joined: Jan 31, 2009
Posts: 2524
Location: New Delhi
Status: Offline
|
| Posted: Mon Jul 04, 2011 12:06 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
Nice  |
|
|
| Back to top |
|
|
sushant
Regular Poster on IAH
Joined: Sep 25, 2006
Posts: 531
Location: Faridabad
Status: Offline
|
| Posted: Mon Jul 04, 2011 12:44 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
would love to see it actual working condition over a tank.
those lenses may result it spot lite effect. |
|
|
| Back to top |
|
|
Mel81x
IAH New Member
Joined: May 01, 2011
Posts: 55
Location: Bangalore
Status: Offline
|
| Posted: Mon Jul 04, 2011 1:31 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
| What's the reflective surface used on your build? I'd like to try LEDs as well but toying with the idea of building one myself versus having it fabricated in parts from different people. |
|
|
| Back to top |
|
|
yajur
Regular Poster on IAH
Joined: Feb 23, 2011
Posts: 916
Location: tamilnadu
Status: Offline
|
| Posted: Mon Jul 04, 2011 1:32 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
| wow nice setup of led |
|
|
| Back to top |
|
|
tarang
IAH New Member
Joined: May 05, 2007
Posts: 53
Location: guwahati,assam
Status: Offline
|
| Posted: Mon Jul 04, 2011 7:29 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
| @josyjames...sir very neat work..i am curious to know what is the material that you have used for the outer case... |
|
|
| Back to top |
|
|
Zakk
Regular Poster on IAH
Joined: Aug 10, 2009
Posts: 1091
Location: Kochi, Kerala
Status: Offline
|
| Posted: Mon Jul 04, 2011 7:44 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
| nice build Josy. |
|
|
| Back to top |
|
|
josyjames
Committed Member of IAH
Joined: Apr 21, 2010
Posts: 2500
Location: Bangalore-Ramamurthy Nagar
Status: Offline
|
| Posted: Mon Jul 04, 2011 8:40 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
@ Anand, Hrishi, yajur, Zakk,
Thanks for the comments..
@ Sushant,
This setup was done for an IAH member. Optics is used to cover the entire surface area of the tank. When all LED"s are lit together, the spots will not be visible, as each LED's spots will overlap with the others.
@ Mel,
Reflective surface is not required for LED's since optics are used.
@ tarang,
The setup is completely made up of Acrylic sheet. Used 5mm black acrylic sheet for the case and crystal clear for the legs to hold the hood to the tank. |
|
|
| Back to top |
|
|
nanomania
Regular Poster on IAH
Joined: May 16, 2011
Posts: 1060
Location: mumbai (south)
Status: Offline
|
| Posted: Mon Jul 04, 2011 9:22 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
| where did u buy them from? what the kelvin? |
|
|
| Back to top |
|
|
discusfav
Frequent Visitor to IAH
Joined: Jun 19, 2009
Posts: 181
Status: Offline
|
| Posted: Mon Jul 04, 2011 11:54 am Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
very innovative.please give complete details as to the optics,driver,heat sink etc,it will be a big help to fellow hobbyists.
thanks
sameer |
|
|
| Back to top |
|
|
Sankaranns
Frequent Visitor to IAH
Joined: May 28, 2011
Posts: 197
Location: Wayanad-Kerala
Status: Offline
|
| Posted: Mon Jul 04, 2011 8:04 pm Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
| Perfect lightning.. |
|
|
| Back to top |
|
|
techikhan
Frequent Visitor to IAH
Joined: Jul 21, 2010
Posts: 236
Location: Bangalore
Status: Offline
|
| Posted: Mon Jul 04, 2011 8:41 pm Post subject: Re: Yet another LED light for a Nano tank.. |
|
|
very neetly done...... every time I see your post i too get tempted to switchover to LED  |
|
|
