 Posted: Mon Jun 25, 2012 12:21 pm Post subject: Low cost PVC lighting (DIY) |
 |
|
Hi Friends,
This is my first post in the DIY Section.
This is a very low cost PVC lighting for 2 feet tanks.
The same method can be used for tanks of any length.
Expecting your comments and ideas for enhancements.
Items needed.
PVC Pipe - 4" diameter
Silver Paper
Light, Holder, Ballast and Clamp.
Screws, Nuts and Bolts
Fevicol
Haxo Blade
Black Enamel Paint 100ml and Brush
The images below will explain you how to make it..
The sides are kept open for air circulation.
Please leave your comments.
Regards
Sujo |
|
|
| Back to top |
|
 |
Deathstar
Regular Poster on IAH
Joined: Oct 14, 2011
Posts: 667
Location: bangalore
Status: Offline
|
| Posted: Mon Jun 25, 2012 12:25 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
Nice diy sujo  |
|
|
| Back to top |
|
|
hnabhi
Frequent Visitor to IAH
Joined: Nov 09, 2011
Posts: 182
Location: Kormangala, Bangalore
Status: Offline
|
| Posted: Mon Jun 25, 2012 12:29 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
Cool design Sujo  |
|
|
| Back to top |
|
|
arjundogra
Regular Poster on IAH
Joined: Oct 12, 2009
Posts: 317
Location: chennai
Status: Offline
|
| Posted: Mon Jun 25, 2012 12:33 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
| Thats a nice one. Simple and neat design. |
|
|
| Back to top |
|
|
harshal
Regular Poster on IAH
Joined: Jan 12, 2006
Posts: 978
Location: Bangalore
Status: Offline
|
| Posted: Mon Jun 25, 2012 12:51 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
Hi Sujo
Very Innovative!!! Like the ease of the whole construction just one suggestion try and put the nut and bolt system on top the other way will make the look better. |
|
|
| Back to top |
|
|
josyjames
Committed Member of IAH
Joined: Apr 21, 2010
Posts: 1882
Location: Bangalore-Ramamurthy Nagar
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:02 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
| Nice DIY design Sujo.. Had you glued the pipe to the pvc stand? |
|
|
| Back to top |
|
|
Rajdeep_Banik
IAH New Member
Joined: Jun 23, 2012
Posts: 80
Location: Agartala, Tripura
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:17 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
Superb design
What will you keep? Plants and invertebrates? |
|
|
| Back to top |
|
|
vicky70l
Regular Poster on IAH
Joined: Jun 20, 2012
Posts: 282
Location: Mumbai
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:18 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
Nice simple DIY technically correct rustproof and top of that without loosing aesthetic value.
Small suggestion you can fix small PVC strip fixed inline with nut bolt to keep them together |
|
|
| Back to top |
|
|
Sujo
Regular Poster on IAH
Joined: Dec 11, 2011
Posts: 267
Location: Mahadevpura, KR Puram, Bangalore
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:37 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
@Pavan @hnabhi @arjundogra
Thanks for your comments.. :)
@Harshal
Thanks.
That bolt is to hold the light holder and clamp.
I cannot keep those bolts upside down because it will be in contact with holder and the light.
But I can reduce the length of those bolts so that they will not appear much.
@Shelly
Thanks.
The main PVC and PVC stand are not glued together.
So it will allow free movement.
The angle of the light can be changed if needed.
But there are 2 screws in the main PVC (Red color in the below image).
These screws will avoid the chance of the main PVC moving left and right.
@Rajdeep_Banik
Thanks.
I am keen on plants..
The setup shown is only 3 days old.

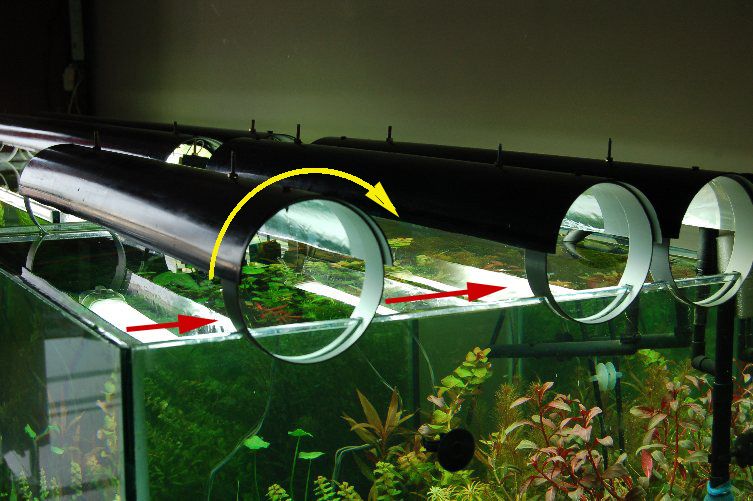

As the PVCs are not glued, they can be moved like this and change the angle of lighting...
|
Last edited by Sujo on Mon Jun 25, 2012 1:49 pm; edited 3 times in total |
|
| Back to top |
|
|
SumitB
IAH New Member
Joined: Apr 16, 2012
Posts: 19
Location: Shillong, Meghalaya
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:44 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
| Wonderful work. Thanks for sharing. I may very well try this for one of my 36" tank! |
|
|
| Back to top |
|
|
GANESAA
Regular Poster on IAH
Joined: May 04, 2011
Posts: 478
Location: Mumbai
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:45 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
| Excellent !!!! |
|
|
| Back to top |
|
|
Sujo
Regular Poster on IAH
Joined: Dec 11, 2011
Posts: 267
Location: Mahadevpura, KR Puram, Bangalore
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:52 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
@SumitB
Thanks...
It will look better in lengthy tanks.
In my 4 feeter, this looks better.
@GANESAA
Thanks |
|
|
| Back to top |
|
|
DVD2103
Frequent Visitor to IAH
Joined: Jul 01, 2010
Posts: 165
Location: Bangalore
Status: Offline
|
| Posted: Mon Jun 25, 2012 1:54 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
WOW ..... awesome DIY .....  |
|
|
| Back to top |
|
|
abhis9
Committed Member of IAH
Joined: Nov 17, 2008
Posts: 2566
Location: Kolkata, West Bengal, India
Status: Offline
|
| Posted: Mon Jun 25, 2012 2:02 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
| Really a Innovative one.........Excellent DIY job..... |
|
|
| Back to top |
|
|
cyclopse99
Frequent Visitor to IAH
Joined: Apr 28, 2012
Posts: 225
Location: Bengaluru
Status: Offline
|
| Posted: Mon Jun 25, 2012 2:08 pm Post subject: Re: Low cost PVC lighting (DIY) |
|
|
| Amazing work Sujo. Such a simple and perfect design with very easy to get stuffs! 3 cheers for you! |
|
|
